Latch: The Standard Plug

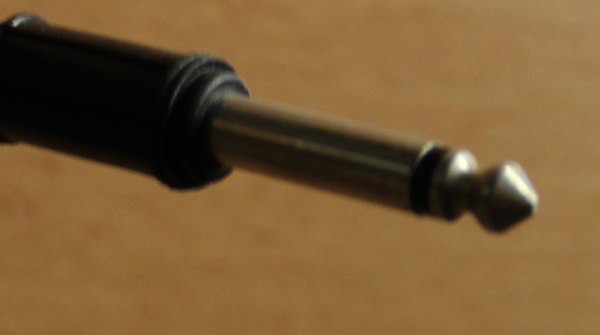

- At Jack with two rings (TS-Jack) is transferred to a channel unbalanced (Mono Signal) as an AC voltage between Signal and ground.
- In the case of the supposed Stereo Jack (TRS), there are two possibilities: Either two channels protrude respectively unbalanced between channel and common ground (Two Mono signals or a Stereo Signal) or a channel is symmetrically transferred (a Mono Signal).
- In the case of an unbalanced connection will simply transmit the Signal.
- A balanced connection uses a Trick to the transmission to eliminate errors: The Signal is transmitted in the normal (+) and reversed (-), i.e. with a negative voltage. The sum of the two signals would be Zero. Therefore, the reversed Signal is rotated in the terminal and back again. Disorders, for example, by electromagnetic waves from the outside, produce in two transmission channels of the same noise. By the Turn of a channel after the Transmission of the useful signal and the sum of the interference noise to Zero is doubled.
- The typical plug is the male Connector type, the connector is female.
- When the male connector is inserted into the female connector strip Signal and ground, and a short Crack is audible.
- In a particular practical tip we will explain how you broken latch cable repair.
Compatibility between TRS and XLR

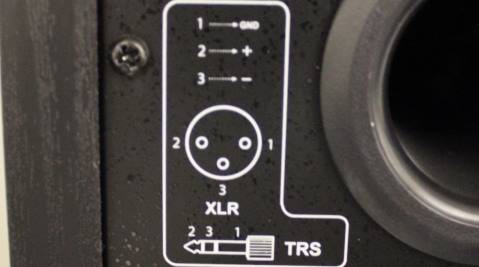

- There are Adapter and balanced cable adapter, with which you can Sound from XLR to TRS to transfer.

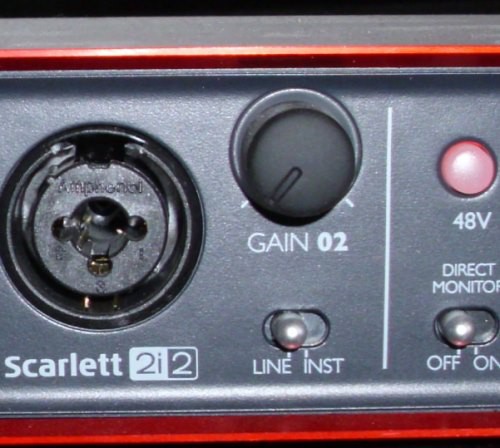

- In addition, Combi-Jacks that will work with both TRS as well as XLR connectors exist.
- However, you can only with a few devices,phantom power via TRS transfer. Because, as described above, the Insertion of the latch to a short circuit that can damage sensitive devices.
- There are also adapters from XLR to TS Jack. Here are bridged for a single-ended Transmission, two of the XLR Pins.
Latest Videos

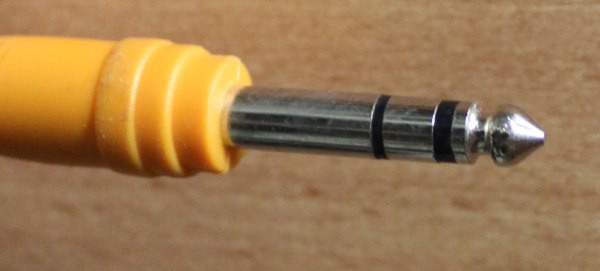

Jack in 6.3 mm as a balanced Mono plug...
Jack in 6.3 mm as a balanced Mono plug...

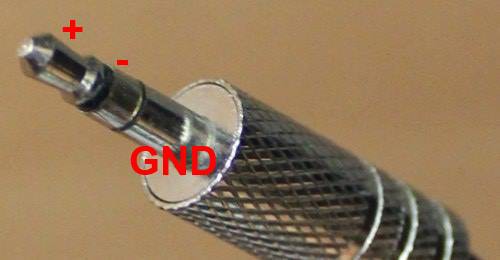

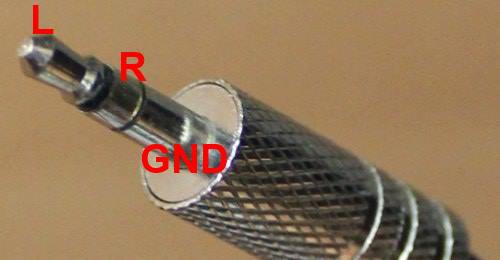

... as a balanced Stereo plug (two balanced channels), and as an unbalanced Mono connection.
... as a balanced Stereo plug (two balanced channels), and as an unbalanced Mono connection.

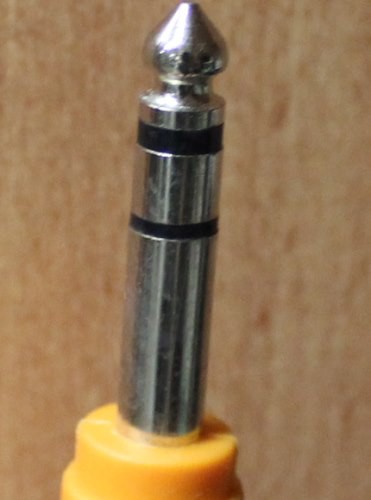

It is up to the device used, whether a two channels unbalanced...
It is up to the device used, whether a two channels unbalanced...
... or a channel is symmetrically transferred.
... or a channel is symmetrically transferred.

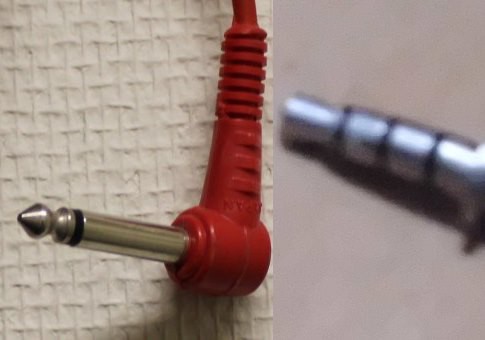

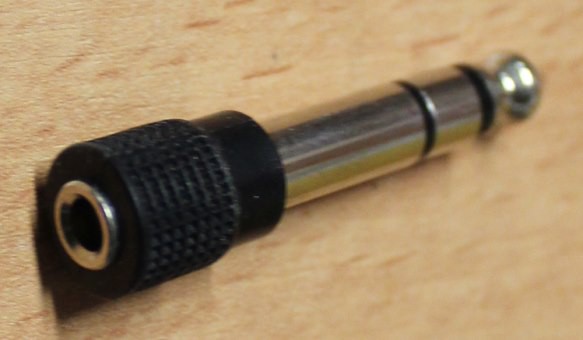

There is an Adapter from 3.5 to 6.3 mm Jack (see figure), and Vice versa.
There is an Adapter from 3.5 to 6.3 mm Jack (see figure), and Vice versa.
Both connectors are typical [[http://praxistipps.chip.de/lautsprecheranschluesse-typen-und-ihre-vorzuege_41085/Lautsprecheranschlüsse]]. With an Adapter, or adapter cable unbalanced Jack and Jacks XLR can be connected to plugs...
Both connectors are typical [[http://praxistipps.chip.de/lautsprecheranschluesse-typen-und-ihre-vorzuege_41085/Lautsprecheranschlüsse]]. With an Adapter, or adapter cable unbalanced Jack and Jacks XLR can be connected to plugs...

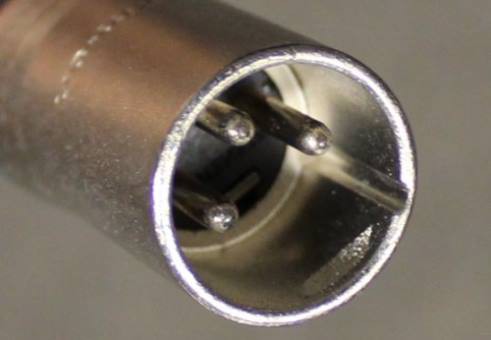

... with male...
