Laptop cleaning the fan - even for the layman, not the work of the devil
Almost always, you need to open your Laptop to access the fan. Prior to that, you should remove the battery. Your battery should be installed firmly, you should be either very careful, or the work of a professional leave. The examples in the image gallery are all equipped with a Lenovo Y500 carried out. However, the process is almost always the same. Some models are more difficult and some are easier to open. Mostly you will find illustrated instructions on the Internet.
- As already mentioned, you need to remove the battery. To do this, you must solve are mostly releasing the safety catch on the underside of the device, a safety latch or screws.
- So you can remove the bottom cover, you need to remove several screws.
- The cover you can lift it then with a little pressure and remove.
- The clogged fan can remove, either partially or clean it directly. Use chopsticks is best to use a fine watts. Remember to clean the copper fins, otherwise, the air flow can not escape.
- Then return the fan to its original place and put your Laptop back.
Fan cleaning Software
Many manufacturers provide on their devices, a Software that allows you, the fan for a short time, turned up to the maximum. If you perform on a regular basis, collects so much dust. However, the procedure will bring you nothing if a certain layer of dust was present. This is then compressed, possibly even more, with the result that your Laptop is even hotter and louder.
We will explain what you need to consider, if you have a new Laptop battery to buy like.
Latest Videos
To remove the battery for a Y500, you must unlock the latch to the right once. To the left you must keep in entsicherter Position. Only then you can remove the battery easily.
To remove the battery for a Y500, you must unlock the latch to the right once. To the left you must keep in entsicherter Position. Only then you can remove the battery easily.
As shown in the picture, you will need to remove nine Phillips screws.
As shown in the picture, you will need to remove nine Phillips screws.
A fan that you can clean are located in the upper right corner. He supplied the graphics card and the CPU via Heatpipes.
A fan that you can clean are located in the upper right corner. He supplied the graphics card and the CPU via Heatpipes.

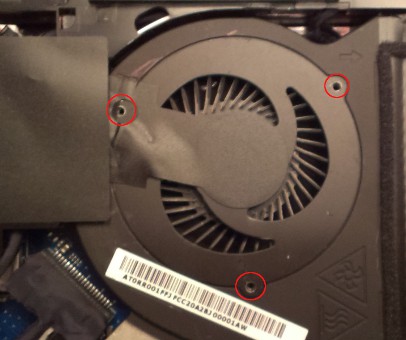

To make the fan easier to clean, loosen the three screws, and then pry out the fan.
To make the fan easier to clean, loosen the three screws, and then pry out the fan.
The fan in the picture has only a light dust, but with little in the covering contributes also to the cooling capacity decreases. In this Position, you can clean the fan with a cotton swab.
The fan in the picture has only a light dust, but with little in the covering contributes also to the cooling capacity decreases. In this Position, you can clean the fan with a cotton swab.
